High Power Density IGBT Modules —Engineered with advanced trench-gate and soft-switching technologies, IGBT modules deliver low conduction loss, superior thermal management, and outstanding reliability.Covering 650V–1200V voltage classes and multiple industrial-grade packages, they are ideal for industrial inverters, UPS and energy storage systems, EV traction drives, photovoltaic and wind inverters, fast-charging stations, and smart grid applications.
Product Overview
Jaron’s IGBT Module series delivers outstanding electrical performance across a wide voltage range (650V–1200V) and multiple package options (C1, E1, E2, P2, P3, E3, E1A, E2A, etc.), supporting diverse applications from industrial drives and inverters to UPS and EV power systems. These modules feature low saturation voltage (VCE(sat)_typical 1.45–2.1V), excellent switching behavior (Eon+Eoff as low as 2.8 mJ), and superior thermal management with minimal junction-to-case resistance (Rth(j-c) as low as 0.043 ℃/W). Designed for long life and high power density, they ensure reliable and efficient energy conversion under demanding high-temperature industrial conditions. All devices are RoHS compliant.
Application

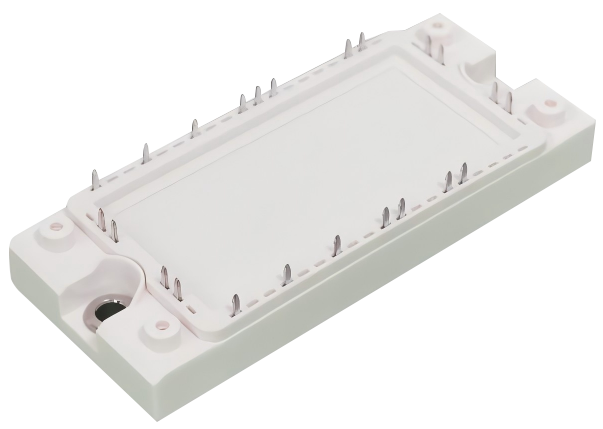

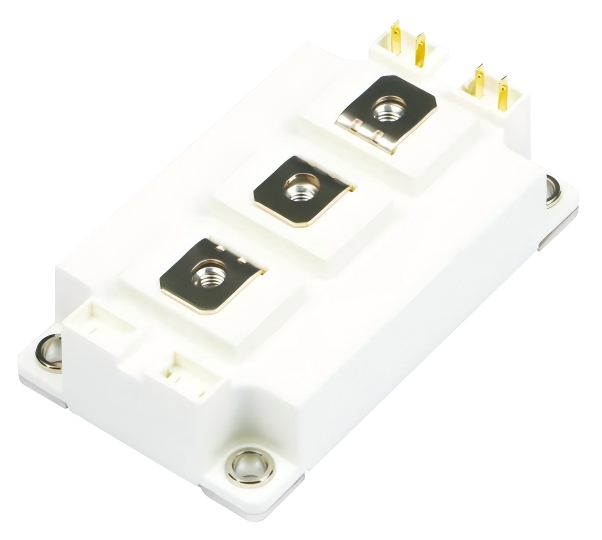

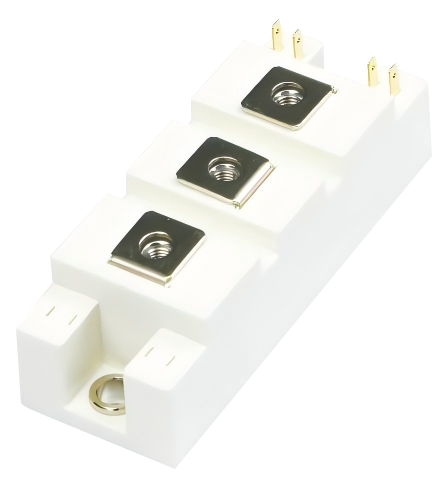

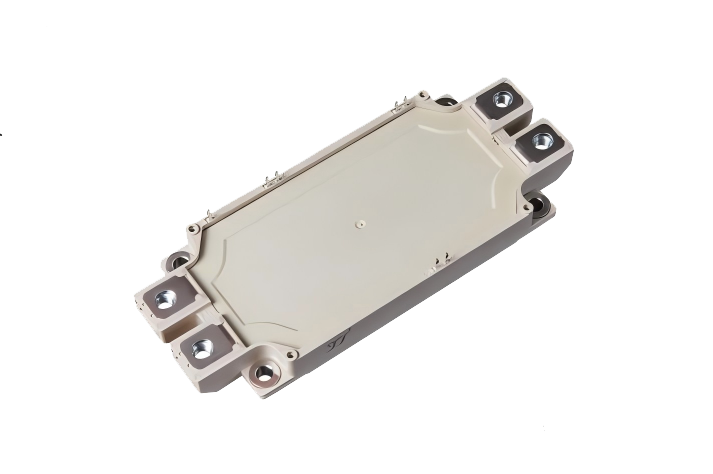

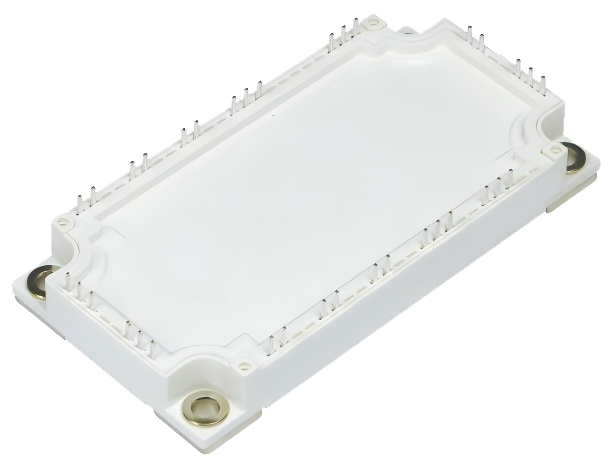

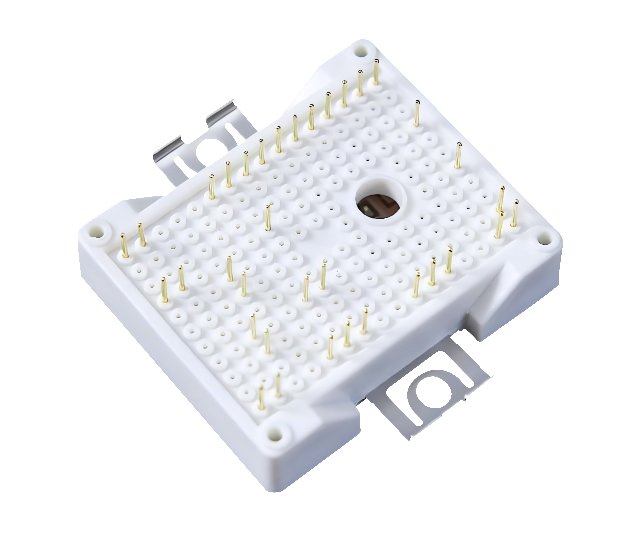

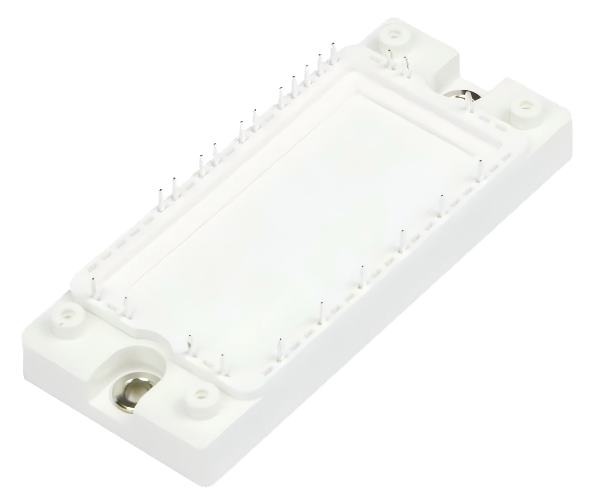

| Product Name | Package | VCES _Min(V) | IC @ TC=100℃(A) | VCE(sat) _Typ(V) | Eon+Eoff typ. Tj=150℃ （mJ） | Rth(j-c) _Max((℃/W) |
| MG100HF065TLC1 | C1 | 650 | 100 | 1.45 | 8.4 | 0.36 |
| MG100HF12LEC1 | C1 | 1200 | 100 | 3.1 | 31.1 | 0.13 |
| MG100HF12TFC1 | C1 | 1200 | 100 | 2 | 9.5 | 0.18 |
| MG100HF12TLC1 | C1 | 1200 | 100 | 1.9 | 21 | 0.19 |
| MG100P12E2 | E2 | 1200 | 100 | 1.85 | 22.6 | 0.27 |
| MG100P12MLE2 | E2 | 1200 | 100 | 1.6 | 22.1 | 0.37 |

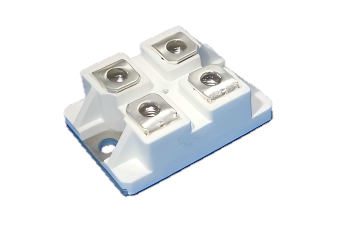

| MG100UZ12TLGJ | GJ | 1200 | 100 | 1.85 | 12.9 | 0.28 |
| MG10P12E1 | E1 | 1200 | 10 | 1.85 | 2.3 | 1.25 |
| MG10P12P2 | P2 | 1200 | 10 | 1.85 | 1.53 | 1.43 |
| MG10P12P3 | P3 | 1200 | 10 | 1.85 | 1.53 | 1.40 |
| MG150HF065TLC1 | C1 | 650 | 150 | 1.55 | 6.74 | 0.32 |
| MG150HF12TFC2 | C2 | 1200 | 150 | 2.2 | 32.5 | 0.19 |
| MG150HF12TLC1 | C1 | 1200 | 150 | 1.9 | 29.5 | 0.155 |
| MG150HF12TLC2 | C2 | 1200 | 150 | 1.9 | 35.2 | 0.18 |
| MG150P12E2 | E2 | 1200 | 150 | 1.9 | 34.9 | 0.19 |
| MG150P12MLE2 | E2 | 1200 | 150 | 1.67 | 31.2 | 0.28 |
| MG15P12E1 | E1 | 1200 | 15 | 1.85 | 2.98 | 1.15 |
| MG15P12MLP2 | P2 | 1200 | 15 | 1.6 | 2.34 | 1.37 |
| MG15P12P2 | P2 | 1200 | 15 | 1.85 | 2.58 | 1.05 |
| MG15P12P3 | P3 | 1200 | 15 | 1.85 | 2.58 | 1.05 |
| MG200HF12LEC2 | C2 | 1200 | 200 | 3.1 | 51.8 | 0.073 |
| MG200HF12TFC2 | C2 | 1200 | 200 | 2.2 | 46.5 | 0.12 |
| MG200HF12TLC2 | C2 | 1200 | 200 | 1.9 | 50.5 | 0.12 |
| MG200TF12MLE2A | E2A | 1200 | 200 | 1.7 | 49.3 | 0.23 |
| MG225HF12TLE3 | E3 | 1200 | 225 | 1.9 | 48.5 | 0.12 |
| MG25P12E1 | E1 | 1200 | 25 | 1.85 | 4.58 | 0.90 |
| MG25P12E1A | E1A | 1200 | 25 | 1.85 | 4.58 | 0.90 |
| MG25P12MLE1 | E1 | 1200 | 25 | 1.6 | 4.9 | 0.97 |
| MG25P12MLP3 | P3 | 1200 | 25 | 1.6 | 4.64 | 1.1 |
| MG25P12P3 | P3 | 1200 | 25 | 1.85 | 4.56 | 0.68 |
| MG300HF065TLC2 | C2 | 650 | 300 | 1.76 | 14.58 | 0.18 |
| MG300HF12LEC2 | C2 | 1200 | 300 | 3.3 | 45 | 0.09 |
| MG300HF12TFC2D | C2 | 1200 | 300 | 2.1 | 60.6 | 0.09 |
| MG300HF12TLC2 | C2 | 1200 | 300 | 1.9 | 75.1 | 0.09 |
| MG300HF12TLE3 | E3 | 1200 | 300 | 1.9 | 63.6 | 0.09 |
| MG30P065MLP2 | P2 | 650 | 30 | 1.7 | 1.32 | 1.34 |
| MG35P12E1A | E1A | 1200 | 35 | 1.85 | 7.66 | 0.66 |
| MG35P12MLE1A | E1A | 1200 | 35 | 1.7 | 6.2 | 0.95 |
| MG35P12MLP3 | P3 | 1200 | 35 | 1.65 | 6.3 | 0.93 |
| MG35P12P3 | P3 | 1200 | 35 | 1.85 | 6.27 | 0.43 |
| MG400HF065TLC2 | C2 | 650 | 400 | 1.7 | 30 | 0.12 |
| MG40P12E1 | E1 | 1200 | 40 | 1.90 | 9.09 | 0.66 |
| MG40P12MLE1 | E1 | 1200 | 40 | 1.7 | 6.4 | 0.95 |
| MG450HF12TLC2 | C2 | 1200 | 450 | 1.9 | 104.3 | 0.065 |
| MG450HF12TLE3 | E3 | 1200 | 450 | 1.85 | 107.8 | 0.065 |
| MG50HF12TFC1 | C1 | 1200 | 50 | 2.1 | 10.6 | 0.52 |
| MG50HF12TLC1 | C1 | 1200 | 50 | 1.95 | 18.8 | 0.31 |
| MG50P065MLP3 | P3 | 650 | 50 | 1.65 | 2.61 | 1 |
| MG50P12E1A | E1A | 1200 | 50 | 1.90 | 13.06 | 0.52 |
| MG50P12E2 | E2 | 1200 | 50 | 1.90 | 13.06 | 0.52 |
| MG50P12E2A | E2A | 1200 | 50 | 1.90 | 13.06 | 0.52 |
| MG50P12MLE1A | E1A | 1200 | 50 | 1.7 | 11.9 | 0.59 |
| MG50P12MLE2 | E2 | 1200 | 50 | 1.7 | 11.9 | 0.55 |
| MG50P12MLE2A | E2A | 1200 | 50 | 1.7 | 12.8 | 0.6 |
| MG50P12MLP3 | P3 | 1200 | 50 | 1.7 | 9.38 | 0.75 |
| MG600HF065TLC2 | C2 | 650 | 600 | 1.55 | 55 | 0.06 |
| MG600HF12TLC2 | C2 | 1200 | 600 | 1.95 | 195 | 0.043 |
| MG600HF12TLE3 | E3 | 1200 | 600 | 1.75 | 189.5 | 0.045 |
| MG600TLU095MSN4 MG600TLL095MSN4 | N4 | 950 | 600 | 1.9 | 46 | 0.18 |
| MG75HF12LEC1 | C1 | 1200 | 75 | 2.5 | 21 | 0.19 |
| MG75HF12TFC1 | C1 | 1200 | 75 | 2.1 | 13.9 | 0.26 |
| MG75HF12TLC1 | C1 | 1200 | 75 | 1.95 | 29.1 | 0.26 |
| MG75P12E2 | E2 | 1200 | 75 | 1.85 | 15.2 | 0.37 |
| MG75P12E2A | E2A | 1200 | 75 | 1.85 | 15.2 | 0.339 |
| MG75P12MLE1A | E1A | 1200 | 75 | 1.6 | 20.1 | 0.47 |
| MG75P12MLE2 | E2 | 1200 | 75 | 1.6 | 14.1 | 0.47 |
| MG75P12MLE2A | E2A | 1200 | 75 | 1.6 | 14.1 | 0.47 |
