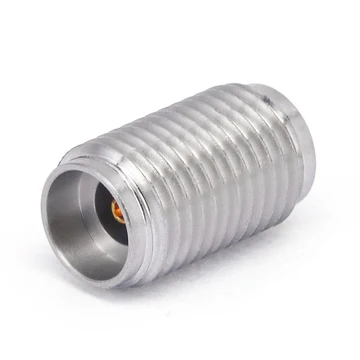

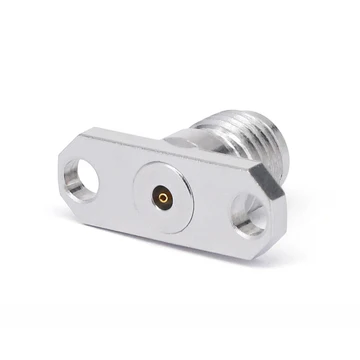

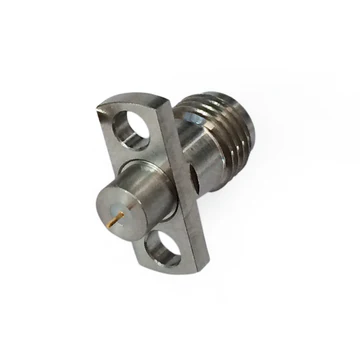

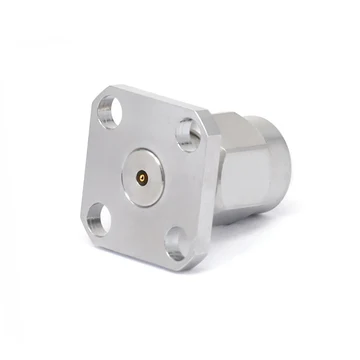

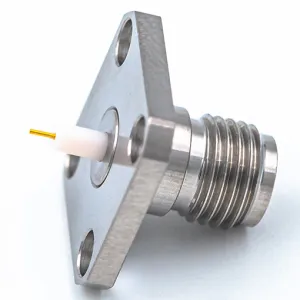

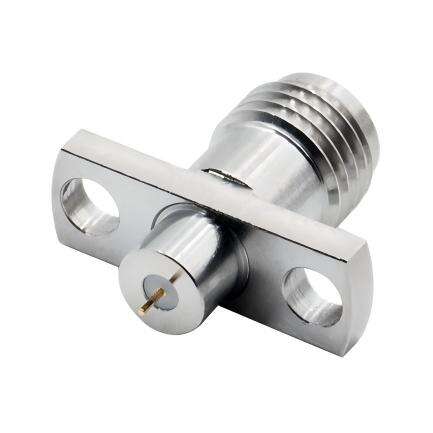

The 2.92 mm high-frequency RF connector series is engineered with precision mechanics and low-loss design to deliver stable, high-fidelity signal transmission up to 40 GHz. It is widely applied in communication systems, microwave test instruments, mmWave modules, and RF laboratory setups, supporting multiple connector configurations and interface compatibility. JARON offers a full-range service from standard products to customized cable assemblies, including technical selection, performance validation, rapid delivery, and long-term supply assurance, providing customers with reliable and consistent RF interconnection solutions.
| Electrical properties | |
| Characteristic impedance | 50Ω |
| Frequency range | DC~40GHz |
| Loss | ≤0.06√f(GHz) dB |
| Contact resistance | Inner conductor ≤ 3 mΩ |
| Outer conductor ≤ 2 mΩ | |
| Insulation resistance | ≥5000 MΩ |
| Dielectric withstand voltage | ≥750 VRMS (at sea level) |
| Environmental characteristics | |
| Temperature range | -65℃+165℃ |
| Vibration | GJB360B - 2009 Test Method 204, Test Condition D |
| Shock | GJB360B - 2009 Test Method 213, Test Condition I |
| Salt spray (corrosion) | GJB360B - 2009 Test Method 101, Test Condition B |
| Moisture resistance | GJB360B - 2009 Test Method 106, Step 7b omitted |
| Mechanical properties | |
| Endurance torque | 1. 7Nm |
| Recommended torque | 0.8Nm to 1.1Nm |
| Service life | ≥1000 times |
| Materials/Surface Treatment | |
| Housing | Stainless steel / passivated & Brass / gold - plated |
| Inner conductor | Beryllium bronze / gold - plated |
| Insulator | PEI & PTFE |
