The JARON Precision RF Coaxial Adapter Series is designed with a focus on accuracy, bandwidth, and long-term stability—offering reliable interconnection solutions for high-frequency systems. Supporting frequencies up to 110 GHz, the series is compatible with multiple international interface standards, meeting the demanding requirements of laboratory testing, mmWave communication, and integrated system applications. With precision-engineered structures and robust metal construction, it ensures low insertion loss, low VSWR, and high repeatability. Beyond standard adapters, JARON provides customized designs and system-level interconnection solutions for high-precision RF performance.
Product Overview
The JARON Precision RF Coaxial Adapter Series is engineered for high-frequency signal transmission and system interconnection, covering an ultra-wide bandwidth from DC to 110 GHz. With precision machining and air-dielectric structures, these adapters ensure outstanding electrical stability and mechanical reliability.
The series includes complete interface families such as 1.0 mm, 1.85 mm, 2.4 mm, 2.92 mm, 3.5 mm, SMA, SSMA, SSMP, SMP, BMA, N, and TNC, as well as hybrid adapters (e.g., 2.92–SMP, 3.5–BMA, N–2.92, 3.5–SMP). They are widely used in microwave communication, RF testing, radar signal chains, and laboratory instrumentation.
Product Series
| High frequency precision series | Universal Connection Series | Miniaturized high frequency series | Industrial grade series |
| 1.0 mm Series (DC–110 GHz) | SMA Series (DC–18 GHz) | SSMA / SSMP Series (DC–26.5 ~ 40 GHz) | N Series (DC–11 GHz) |
| 1.85 mm Series (DC–65 GHz) | TNC Series (DC–11 GHz) | SMP / SMPM Series (DC–40 ~ 65 GHz) | BMA Series (DC–18 GHz) |
| 2.4 mm Series (DC–50 GHz) | BNC Series (DC–11 GHz) | SBMA / NMD Series (DC–26.5 GHz) | Hybrid adapter series (N–3.5, 3.5–SMP, 2.92–SMP, etc.) |
| 2.92 mm Series (DC–40 GHz) | — | — | — |
| 3.5 mm Series (DC–26.5 GHz) | — | — | — |
Technical Features
Frequency range: DC to 110 GHz
Impedance: 50 Ω precision matched
VSWR: ≤ 1.15 (typical)
Insertion loss: < 0.1 √f dB
Coupling types: Threaded, Slide-on, and Push-on styles
Materials: Stainless steel housing / Gold-plated BeCu center contact
Interface standards: MIL-STD-348, IEC 60169, GJB5246-2004 compliant
Versions available: Fixed, Flange-mount, Floating, and Cable Assembly
Applications
RF and microwave test systems
Communication and navigation equipment
mmWave radar modules
Laboratory instrumentation
System integration and rack interconnections

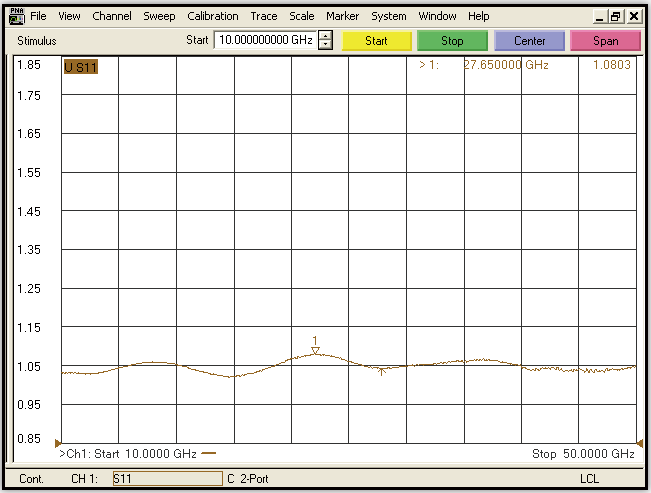

Chart
