Excellent thermal resistance and stability in harsh environments, widely used in industrial sensors and precision measurement circuits.
|

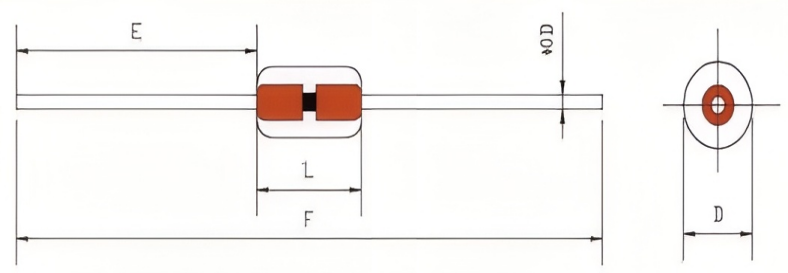

Unit |
D |
L |
E |
F |
ϕOD |
G |
|
mm |
2.0 |
4.0 |
28 |
60 |
0.5 |
/ |
1.MF58B series products are axial lead glass package type
2.Good stability and high reliability
3.Wide resistance range:1~5000KQ
4.High resistance and B value accuracy
5.Glass package,can be used in harsh environments such as high temperature andhigh humidity
6.Small size,sturdy structure,easy for automaticinstallation
7.Operating temperature range-45~-300C
8.Fast heat induction and sensitive response 4S
9.Support long time high temperature work
Temperature control and temperature detection of household appliances such asinduction cooker,electric pressure cooker,rice cooker,electric oven,disinfectioncabinet,water dispenser,microwave oven,electric heater,etc.·Temperature detection and temperature compensation of office automationequipment (such as copiers,printers,etc.)
Temperature control and testing of industrial,medical,environmental,meteorological,and food processing equipment·Temperature protection of rechargeable battery pack and charger
Temperature compensation of instrument coils,integrated circuitsquartz crystaloscillators and thermocouples
