Features enameled wire leads for easy high-density mounting; suitable for module temperature sensing, smart wearables, and compact electronic devices.
|

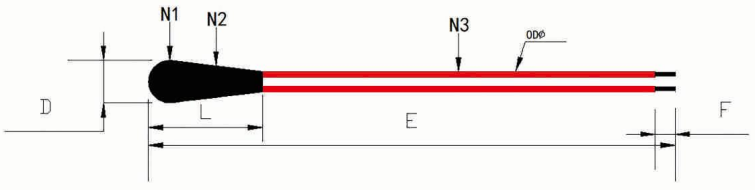

Unit |
D |
L |
E |
F |
ϕOD |
G |
|
mm |
1.5 |
3.5 |
60 |
2.0 |
0.28 |
/ |
1.MF52B series products are resin coating type for radial enameled wire
2.Wide resistance range:1~1000KQ
3.High resistance and B value accuracy
4.High temperature measurement accuracy,up to ±0.05℃
5.Small size,3S response speed
6.High product reliability
7.Can work stably for a long time
8.Operating temperature range-40~+120℃
9.The resistance pins are painted and insulated
10.The shortest product can be 15mm(total length includes head)
Electronic thermometers,medical equipment,mobile power supplies,lithiumbatteries,car wireless chargers,hand warmers,constant temperature coasters,smartmugs,fans,small cooling fans,charging heads,smart bracelets and other small dailynecessities
