IGBT Discrete

High-Performance IGBT Discrete —Developed with advanced trench-gate and field-stop technology, IGBT Discrete combine low VCE(sat), fast switching performance, and optimized thermal management for efficient high-frequency power conversion.
With voltage ratings from 650V to 1200V and current capacities ranging from 10A to 160A, this series is ideal for industrial inverters, UPS and energy storage systems, EV traction drives, photovoltaic and wind power converters, welding machines, induction heating, and smart grid applications.

Product Description

Product Overview

Jaron’s IGBT Discrete series adopts advanced trench-gate and field-stop structures, offering low conduction loss, high switching speed, and outstanding dynamic performance.
Covering 650V to 1200V voltage ratings and 10A to 160A current range, these devices are available in TO-220, TO-247, TO-263, and TO-264 packages, ensuring flexibility for various power conversion systems.
With a typical VCE(sat) of 1.25–1.9V, switching loss (Eon+Eoff) as low as 0.4mJ, and thermal resistance Rth(j-c) down to 0.17℃/W, the series ensures superior performance in high-frequency and high-power environments.
It’s ideal for use in inverters, motor drives, welding machines, induction heating, EV control units, photovoltaic and wind energy converters, providing high reliability, long lifetime, and excellent thermal cycling endurance.

Applications

Industrial inverter and servo drive systems
UPS and energy storage inverters
Electric vehicle drive and DC-AC converter modules
Photovoltaic and wind power grid-tie systems
High-frequency welding and induction heating equipment
Power switching and battery charging systems

Product Name	Package	VCES _Min(V)	IC @ TC=100℃(A)	VCE(sat) _Typ(V)	Eon+Eoff typ. Tj=125℃ （mJ）	Rth(j-c) _Max((℃/W)
DGB10N65CTL0	TO-263	650	10	1.4	0.71	1.5
DGB10N65CTL1K	TO-263	650	10	1.65	0.46	1.3
DGB15N65CTL0	TO-263	650	15	1.4	0.65	1.35
DGB20N65CTL0	TO-263	650	20	1.6	0.83	1.25
DGB30N65CTL1E	TO-263	650	30	1.65	2.21	1.1

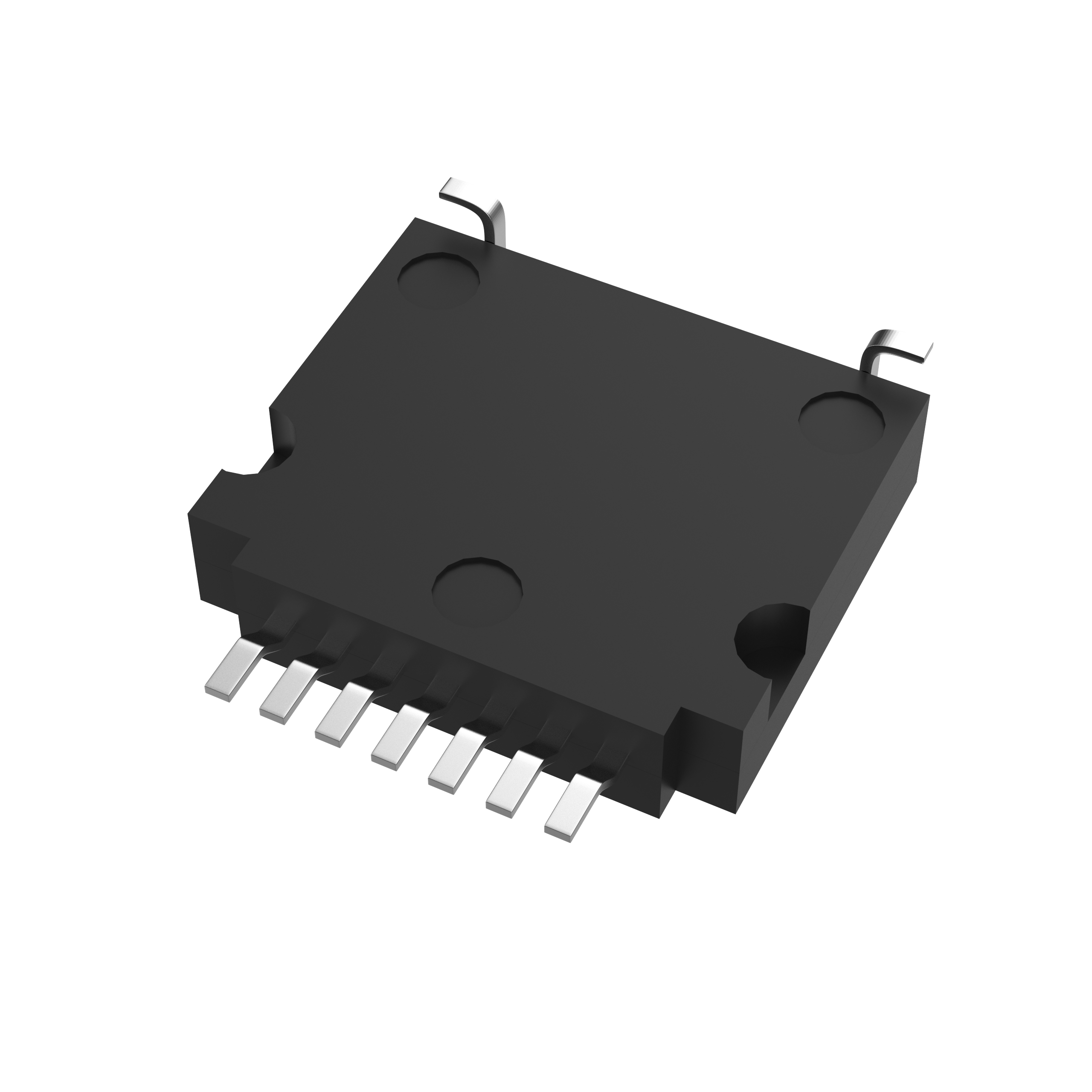

DGBB15N120CTL1A	T2PACK	1200	15	1.55	2.4	1
DGBB25N120CTL1A	T2PACK	1200	25	1.6	4.1	0.65

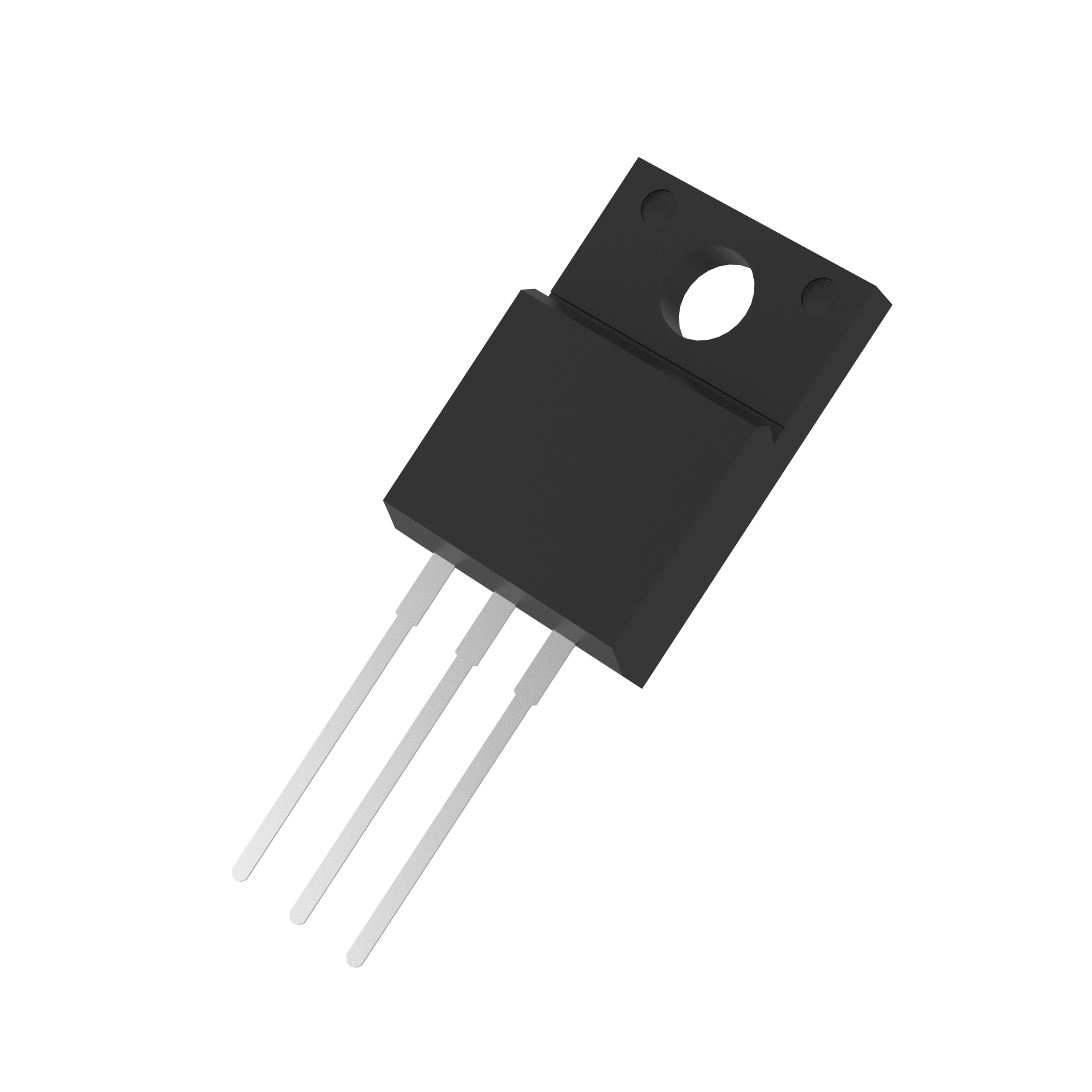

DGF10N65CTL0	TO-220F	650	10	1.4	0.71	4.8
DGF10N65CTL1K	TO-220F	650	10	1.65	0.46	1.3
DGF15N65CTL0	TO-220F	650	15	1.4	0.65	4.4
DGF15N65CTL1K	TO-220F	650	15	1.65	0.7	3.3
DGF20N65CTL0	TO-220F	650	20	1.6	0.83	4
DGF20N65CTL1K	TO-220F	650	20	1.6	0.76	2.7

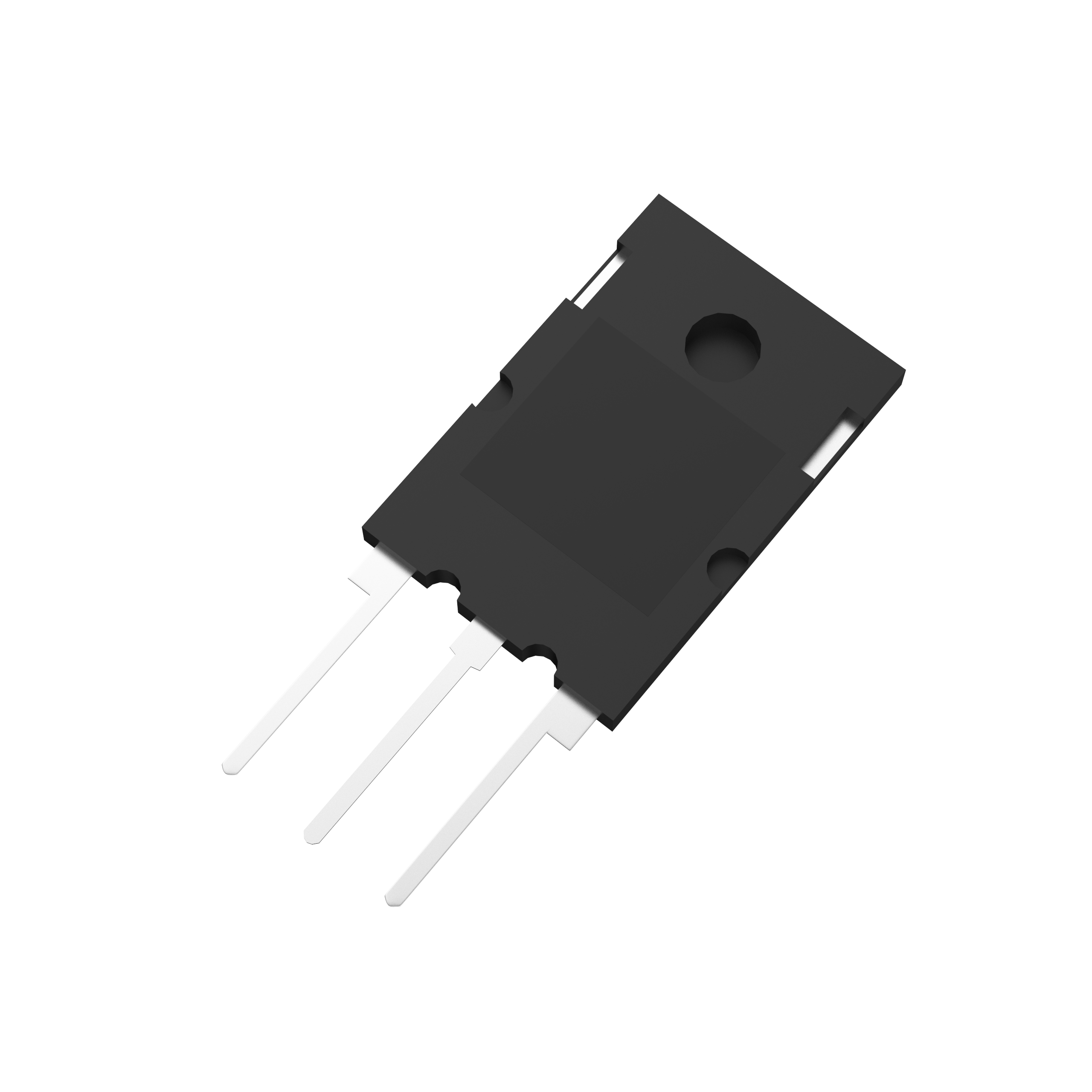

DGL50N120CTL0D	TO-264	1200	50	1.8	11.64	0.3
DGL75N120CTL1J	TO-264	1200	75	1.6	22.6	0.27
DGP10N65CTL0	TO-220	650	10	1.4	0.71	1.5
DGP10N65CTL1K	TO-220	650	10	1.65	0.46	1.3
DGP15N65CTL0	TO-220	650	15	1.4	0.65	1.35
DGP15N65CTL1K	TO-220	650	15	1.65	0.7	1
DGP20N65CTL0	TO-220	650	20	1.6	0.83	1.25
DGP20N65CTL1K	TO-220	650	20	1.6	0.76	0.8

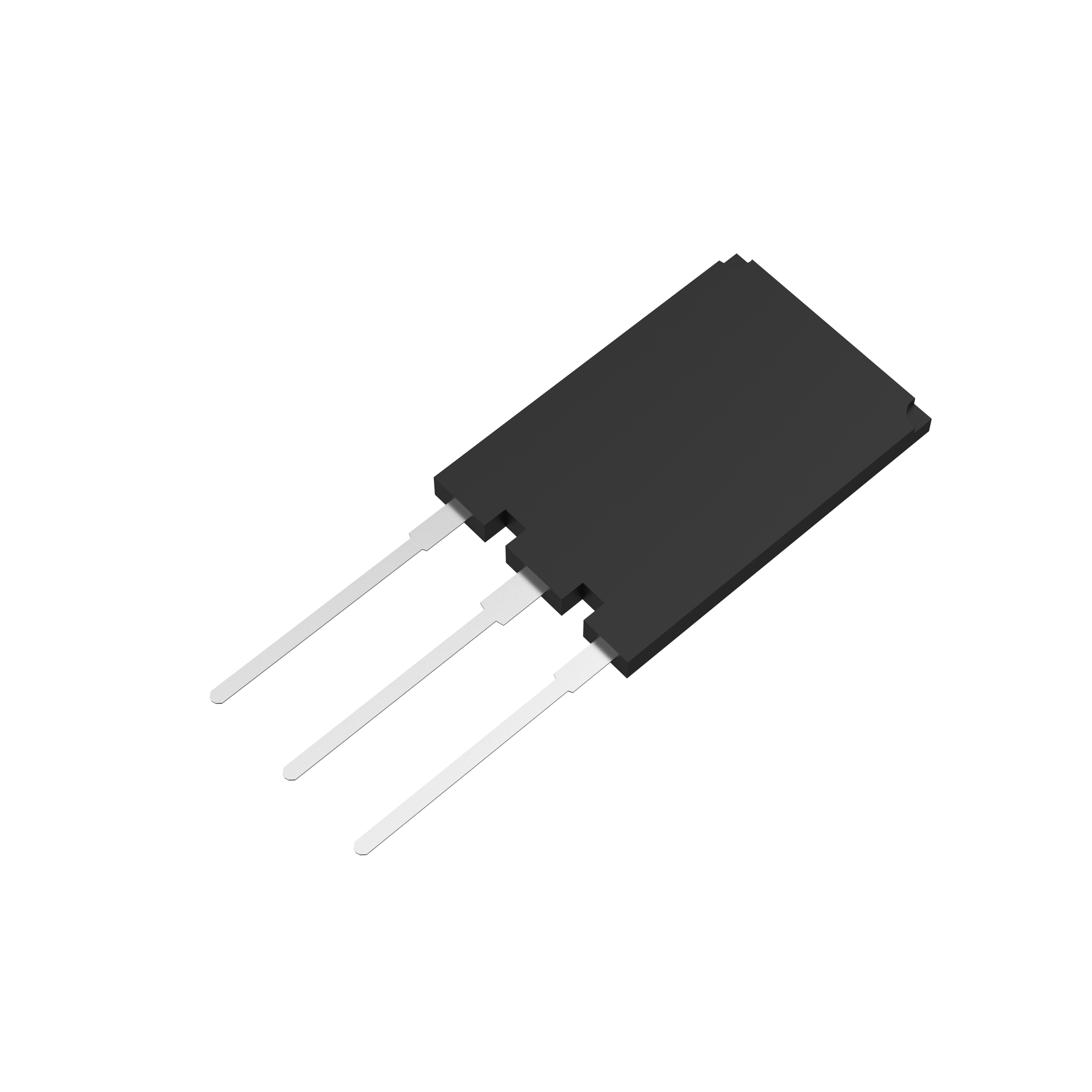

DGQ100N120CTL2A	TO-247-Plus	1200	100	1.5	26.8	0.17
DGQ100N65CTL1D	TO-247PLUS	650	100	1.25	7.2	0.35
DGQ100N65CTS1D	TO-247PLUS	650	100	1.35	5.5	0.35
DGQ120N65CTH1G	TO-247PLUS	650	120	1.6	6.75	0.26
DGQ160N65CTS2A	TO-247PLUS	650	160	1.55	12.78	0.21
DGQ75N120CTH0D	TO-247PLUS	1200	75	2	15	0.2
DGQ75N120CTL1A	TO-247PLUS	1200	75	1.55	17.5	0.23

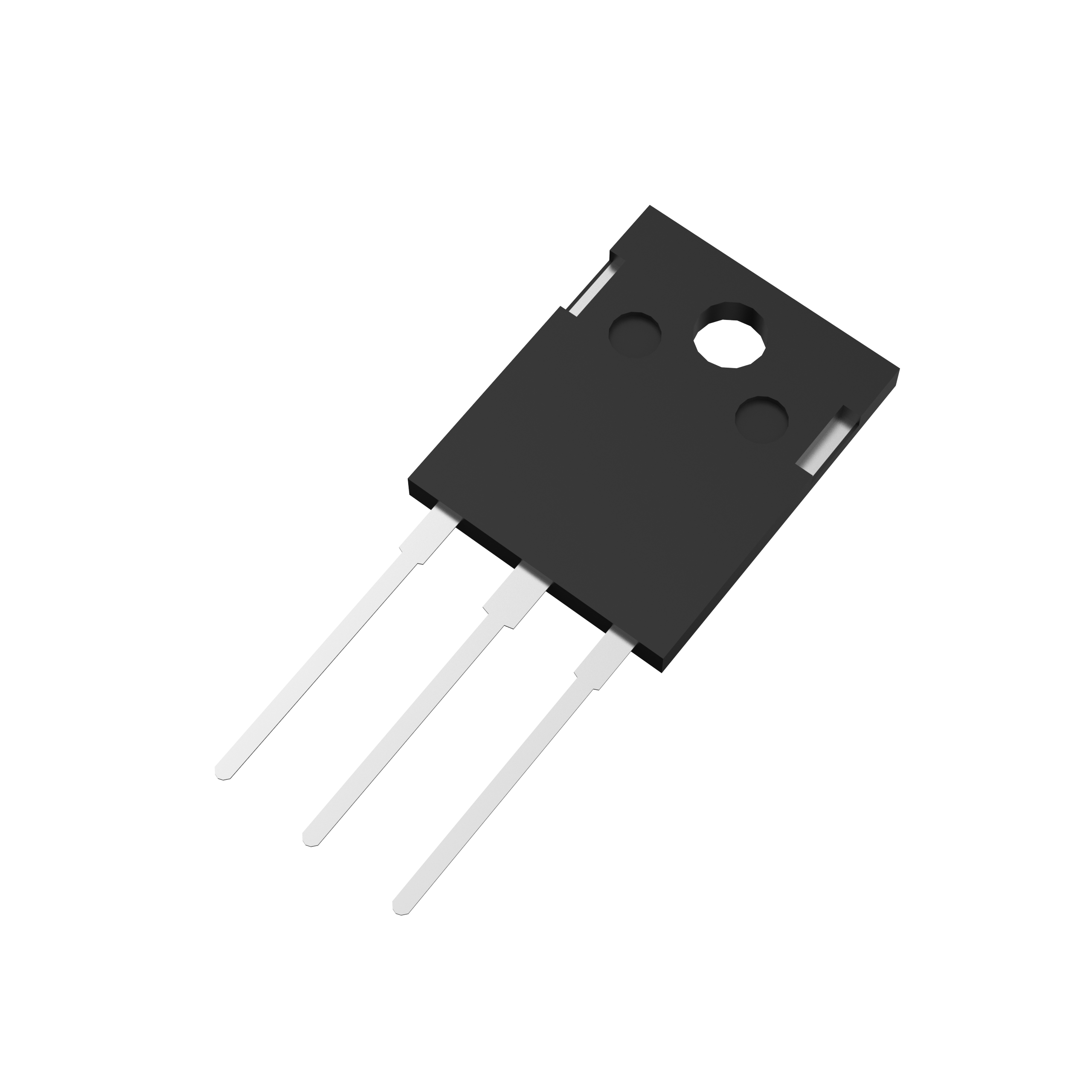

DGW100N65CTL1D	TO-247	650	100	1.25	7.2	0.35
DGW100N65CTS1D	TO-247	650	100	1.35	5.5	0.35
DGW10N120CTL	TO-247	1200	10	1.85	2.23	0.95
DGW10N65CTL1K	TO-247	650	10	1.65	0.46	1.3
DGW15N120CTL	TO-247	1200	15	1.90	3.95	0.75
DGW15N120CTL1A	TO-247	1200	15	1.55	2.4	1
DGW15N120CTLS	TO-247	1200	15	2.35	3.82	0.95
DGW15N65CTL	TO-247	650	15	1.7	0.51	1
DGW15N65CTL1K	TO-247	650	15	1.65	0.7	1
DGW20N65CTL0	TO-247	650	20	1.6	0.83	1.25
DGW20N65CTL1K	TO-247	650	20	1.6	0.61	0.85
DGW25N120CTL	TO-247	1200	25	1.85	4.6	0.46
DGW25N120CTL1A	TO-247	1200	25	1.6	4.1	0.65
DGW30N65BTH	TO-247	650	30	1.95	1.75	0.8
DGW30N65CTH	TO-247	650	30	1.95	1.75	0.8
DGW30N65CTL	TO-247	650	30	1.85	1.71	0.8
DGW30N65CTL2A	TO-247	650	30	1.45	1.92	0.8
DGW40N120CTH0D	TO-247	1200	40	2	6.98	0.3
DGW40N120CTH1A	TO-247	1200	40	1.85	7.2	0.4
DGW40N120CTH2D	TO-247	1200	40	1.65	3.54	0.52
DGW40N120CTL	TO-247	1200	40	1.85	8.1	0.35
DGW40N120CTL1A	TO-247	1200	40	1.7	7.8	0.4
DGW40N120CTL1A1	TO-247	1200	40	1.65	6.45	0.47
DGW40N65ATL0	TO-247	650	40	1.55	1.86	0.8
DGW40N65CTH2F	TO-247	650	40	1.65	2.58	0.7
DGW40N65CTL2A	TO-247	650	40	1.6	2.61	0.8
DGW40N65CTS1K	TO-247	650	40	1.8	3.22	0.8
DGW40N65CTS1K	TO-247	650	40	1.8	3.22	0.8
DGW50N120CTL1A	TO-247	1200	50	1.55	7.42	0.32
DGW50N65CTH2A	TO-247	650	50	1.6	2.56	0.53
DGW50N65CTL0A	TO-247	650	50	1.7	4.07	1.05
DGW50N65CTL1E	TO-247	650	50	1.5	4.98	0.49
DGW50N65CTL2A	TO-247	650	50	1.45	3.82	0.45
DGW50N65CTS2A	TO-247	650	60	1.4	2.69	0.53
DGW60N65BTH0K	TO-247	650	60	1.85	2.75	0.56
DGW60N65CTH2A	TO-247	650	60	1.7	3.27	0.53
DGW60N65CTS2A	TO-247	650	60	1.5	3.42	0.53
DGW75N65CTH2A	TO-247	650	75	1.65	4.37	0.35
DGW75N65CTH2AS	TO-247	650	75	1.65	4.37	0.35
DGW75N65CTL0K	TO-247	650	75	1.6	5.52	0.32
DGW75N65CTL1E	TO-247	650	75	1.7	5.91	0.45
DGW75N65CTS2A	TO-247	650	75	1.45	4.64	0.35
DGW75N65CTS2AS	TO-247	650	75	1.45	4.64	0.35
DGWC75N65CTS2A	TO-247	650	75	1.45	3.68	0.35
DGZ50N65CTH2A	TO-247-4L	650	50	1.6	2.56	0.53
DGZ50N65CTS2A	TO-247-4L	650	50	1.4	2.22	0.53
DGZ75N65CTH2A	TO-247-4L	650	75	1.65	3.59	0.35
DGZ75N65CTS2A	TO-247-4L	650	75	1.45	3.86	0.35
DGZC75N65CTH2A	TO-247-4L	650	75	1.65	3.59	0.35
DGZC75N65CTS2A	TO-247-4L	650	75	1.45	3.86	0.35
