18B20 Digital Temperature Sensor | 1-Wire Precision Temperature Sensor with Unique Addressing

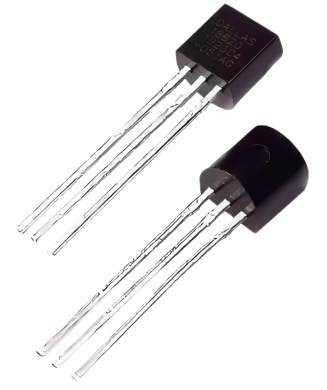

The 18B20 is a digital temperature sensor based on Maxim/Dallas 1-Wire protocol, offering direct digital output with selectable resolution from 9 to 12 bits. It measures temperatures from -50°C to +125°C, with an accuracy of ±0.5°C in the -10°C to +85°C range.
Each device has a unique 64-bit ROM code, enabling multi-device communication on a single bus. This allows for simplified wiring and reliable MCU/PLC interfacing.
Available in TO-92, stainless steel probe, epoxy-potted, wire-leaded, and SMD versions, the sensor is widely used in cold chain, IoT monitoring, greenhouse systems, battery temperature control, and smart appliances.
1.Using DS18B20 chip epoxy sealed temperaturesensor
2.Sensor category:digital temperature sensor
3.Suitable for harsh environments
4.Operating temperature range-50~125℃
5.The temperature deviation can reach 0.1℃
6.Temperature collection,stable work
7.Waterproof rating:Ip67
8.Withstand voltage AC:1800V 30S(air insulationvoltage*2)
9.Different specifications can be customized
Cold storage temperature monitoring,pharmaceuticalfactory GMP detection system,telecom roommonitoring,beer production,building automation,warehouse temperature monitoring,environmentalmonitoring,incubation temperature control,breedingindustry temperature measurement,greenhousetemperature monitoring,various types of controlmonitoring,etc.
