Product Overview

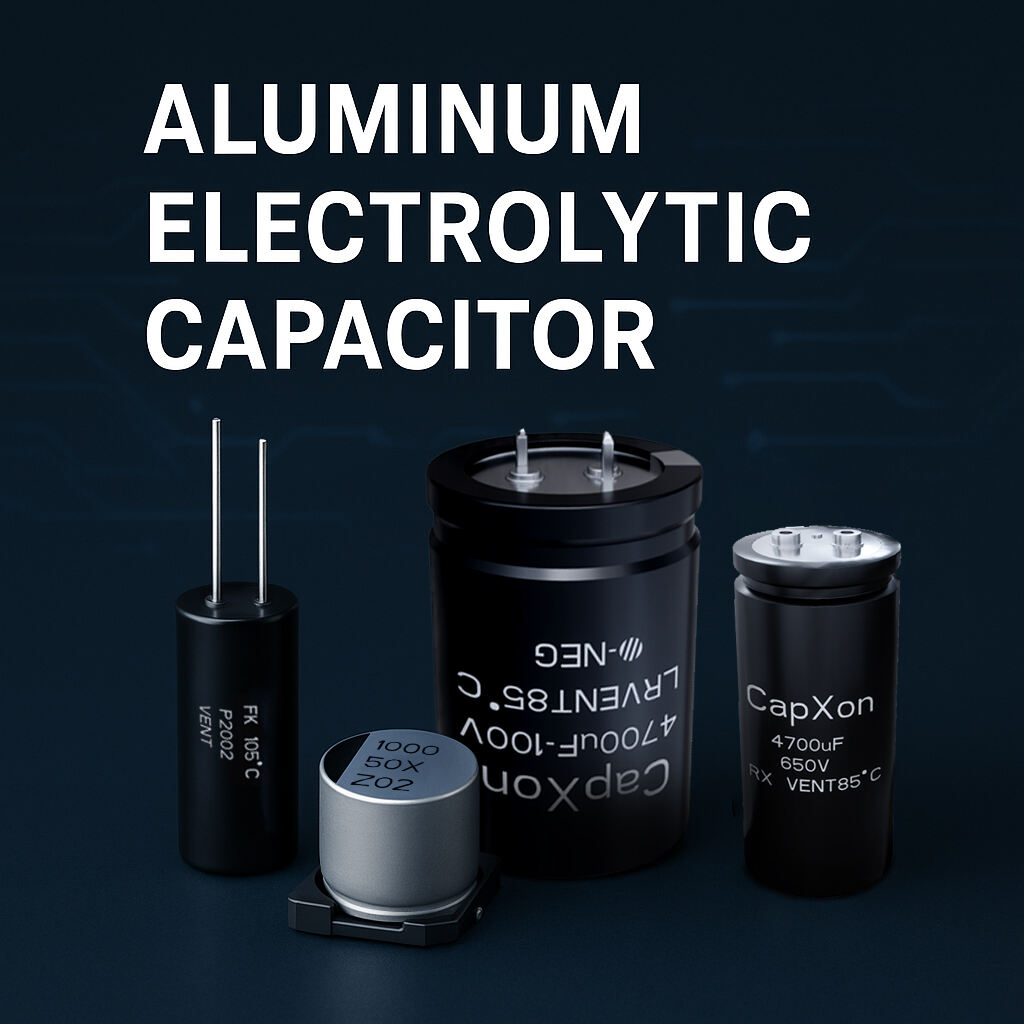

Aluminum electrolytic capacitors are polarized capacitors that utilize an electrolyte and anodic oxide film to store energy. With high capacitance density and cost-effectiveness, they are vital for smoothing DC voltage, absorbing transient spikes, and ensuring stable operation across a wide range of electronic and industrial applications.
Core Functions & Key Benefits
High Capacitance Density: Delivers large capacitance in compact designs, ideal for space-constrained systems.
Excellent Cost Performance: Offers a more economical solution than other capacitor types.
High Reliability & Long Lifespan: Performs reliably under standard conditions for extended periods.
Superior Transient Absorption: Ideal for circuits with dynamic or pulsed loads.
Applications in Power Supply Systems
Aluminum electrolytic capacitors are widely used in AC-DC power modules, switching power supplies (SMPS), and DC-DC converters for filtering, buffering, and voltage stabilization:
Rectifier output filtering: effectively smooths the rectified voltage and suppresses ripple interference
Power output buffering: balances power supply fluctuations when the load changes
Electromagnetic interference suppression: reduces EMI and improves system stability
Common application scenarios include:
AC-DC Adapter
Uninterruptible Power Supply (UPS) System
Solar/Wind Inverter
Industrial Power Supply and Communication Power Supply Module
Applications in Industrial Equipment
Aluminum electrolytic capacitors play a core role in industrial automation and motor drive systems:
Motor starting and energy buffering: absorbing reverse current and sudden current
Stable power supply for sensors and controllers: reducing signal drift and false triggering
Power-off protection: providing short-term energy at the moment of power failure to prevent control data loss
High resistance to high temperature and vibration: adapting to harsh environments, such as machinery manufacturing workshops, metallurgy and mining sites
Strategies for Ensuring Stable Operation
To ensure the best performance of aluminum electrolytic capacitors in power and industrial scenarios, the following points should be noted:
Choose the appropriate voltage rating: Ensure that the rated voltage of the capacitor is 20–30% higher than the operating voltage
Combined with heat dissipation design: Use a heat sink or good ventilation structure to reduce internal temperature rise
Regular maintenance and replacement: Especially in high temperature and high frequency applications, prevent capacity from decreasing
Avoid reverse polarity: Aluminum electrolytic capacitors are polar devices, and reverse connection may cause explosion
Conclusion
Aluminum electrolytic capacitors are fundamental components in electronics. Mastering their use in design ensures system robustness, making them indispensable in power and industrial applications where performance and reliability matter most.
